New

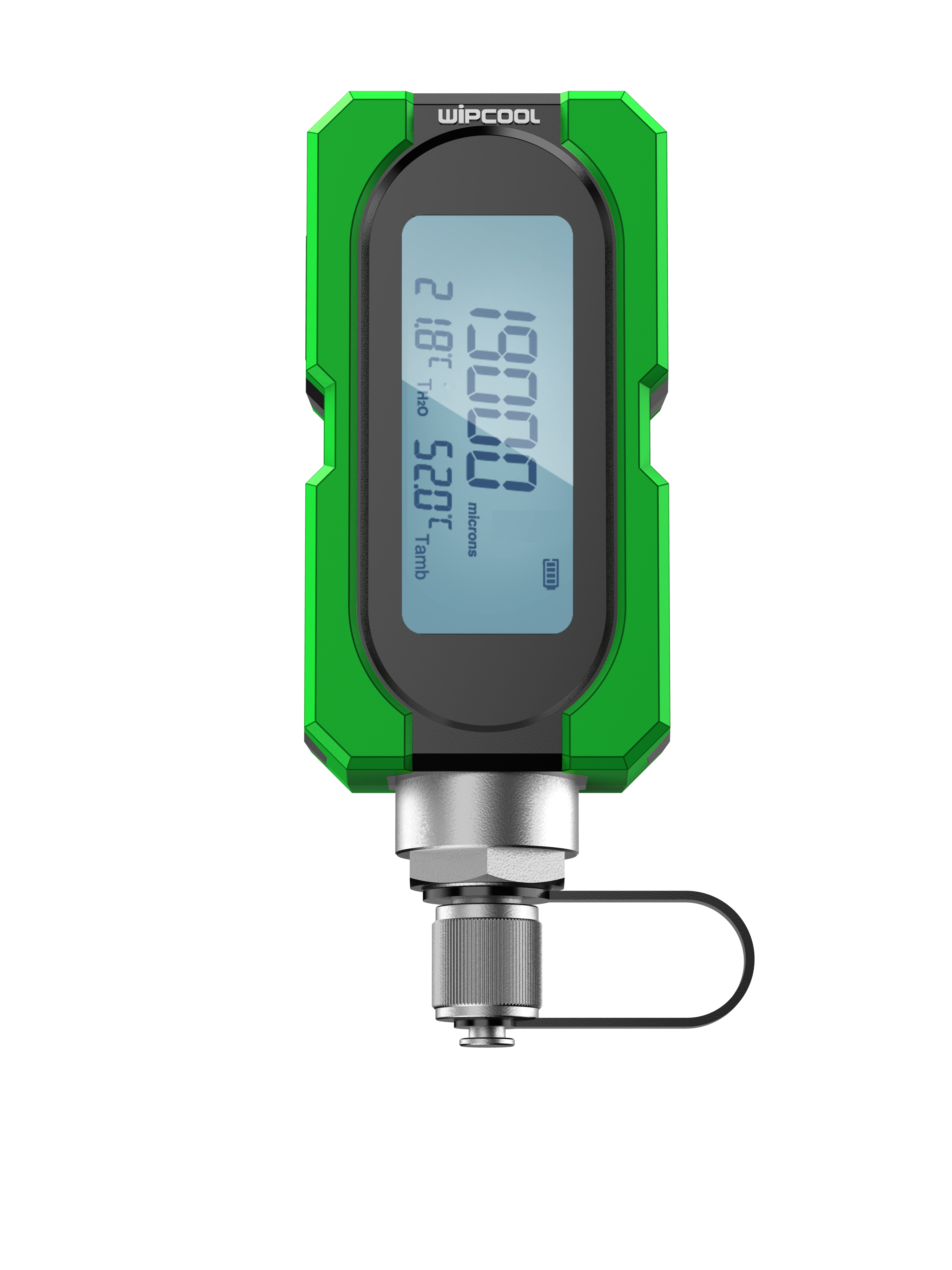

Digital Vacuum Gauge
Measurement range: 0–19,000 microns
Operating temperature: -20 °C to +60 °C
Connection: 1/4" SAE
Accuracy:
1–10,000 microns: ±10% of reading ±10 microns
10,000–19,000 microns: ±20% of reading
Vacuum units:
Microns, mTorr, inHg, Pa, Torr, kPa, mbar, and psia
- Secure payment by card
- E-mail us, we reply swiftly!
- These rows can be edited \*
\* Edit these rows under Content > Product page
Description
Article no.: 200386
Technical Specifications
Model:
MVG-1
Measurement range:
0–19,000 microns
Operating temperature:
-20 °C to +60 °C
Connection:
1/4" SAE
Accuracy:
1–10,000 microns: ±10% of reading ±10 microns
10,000–19,000 microns: ±20% of reading
Resolution:
1–400 microns: 1 micron
400–3,000 microns: 10 microns
3,000–10,000 microns: 100 microns
10,000–19,000 microns: 250 microns
Vacuum units:
Microns, mTorr, inHg, Pa, Torr, kPa, mbar, and psia
Battery:
Rechargeable lithium battery (1,000 mAh)
Overpressure protection:
27.5 bar
